| Model |

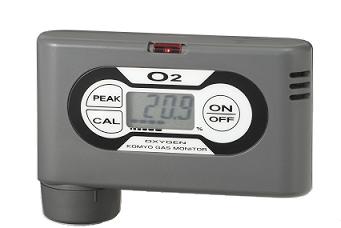

OPA-5000E |
| Sampling |
Diffusion type |
| Measuring Gas |
Oxygen |
| Measuring Principle |
Galvanic cell |
| Measuring Range |
0 to 50.0% |
| Resolution |
0.1% |
| Display Method |
Digital display by LCD |
| Alarm Setting |
18.0% or less |
| Alarm Method |
LCD display(AL1), LED Lamp and Buzzer |
| Explosion proof |
ExiaII CT4X |
| Power Source |
3 x size "AAA" Alkaline batteries(LR03) |
| Continuous Operation |
Alkaline batteries : approx. 1000 hrs |
| Operating Temperature Range |
-10 to 40 ℃ |
| Dimensions |
105 (W) X 56 (H) X 29 (D)mm (excluding a sensor) |
| Weight |
Approx. 150 g (including batteries) |
| Standard Accessories |
Carrying case attached in a waist band |
| Remote Measurement (optional) |
Sensor cord assembly (5m), adapter assembly |
