RETURN TO TOP OF KITAGAWA Gas Detector Tube.

GAS ASPIRATING PUMP

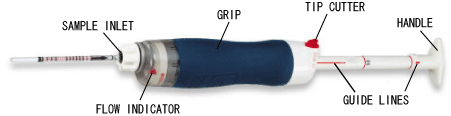

AP-20 SeriesA portable sampling pump to suction constant amount of target gas into detector tubes

Available in four different grip colours (blue, red, green and yellow).

【Characteristic】
・Ergonomically designed. Soft contoured grip prevents slipping.
 Easy to pull handle. Antibacterial material.
・Sample Finish Indicator pops up when sampling is completed.
 The skeleton cover makes it easy to see.
・Ends of detector tubes are easily and safely cut with the ceramic tip cutter.
 A cover on the tip cutter prevents the scattering of glass shards until it is convenient to discard them.
・No power source is required making it truly portable for all applications.
・Rugged construction for even the harshest of environments.
・Patents and Certificates
  :ISO 9001 Certified
  :United States Design Patent No. US D467, 334 S
  :Certificate of Design Registration in Japan No.1131898
MODEL NO.
・Model AP-20B : Blue [Standard]
・Model AP-20R : Red
・Model AP-20G : Green
・Model AP-20Y : Yellow

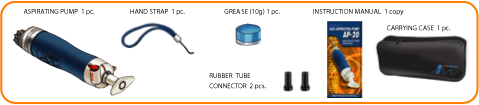

ACCESSORIES
●Hand strap 1pce. ●Rubber tube connector 2pcs. ●Carrying case 1pce.
●Lubricant/Grease(10g) 1pce. ●Instruction manual 1 copy
